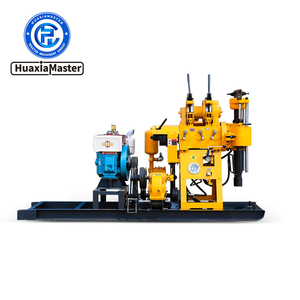

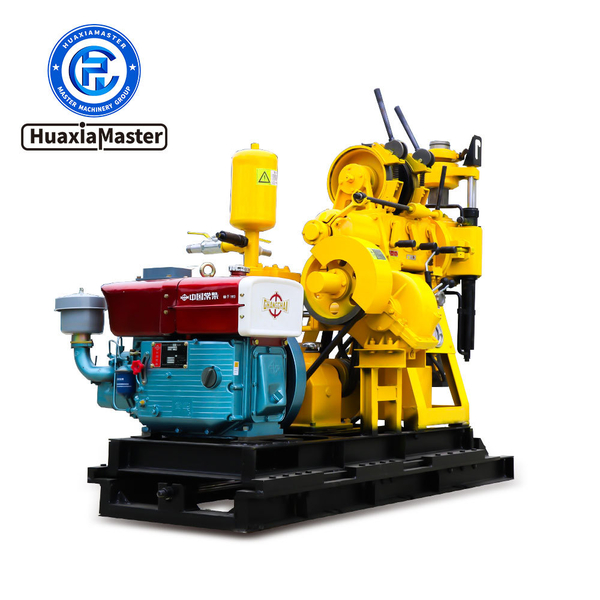

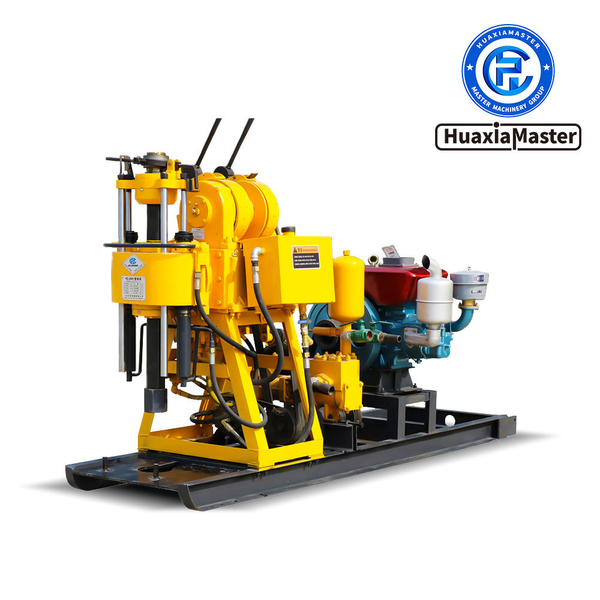

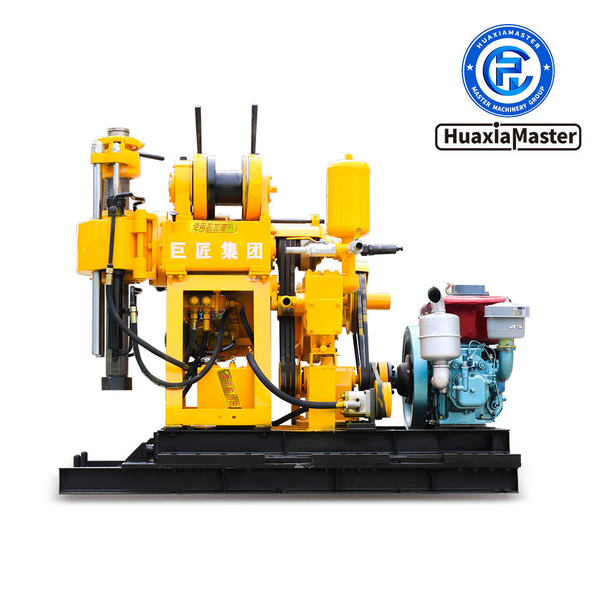

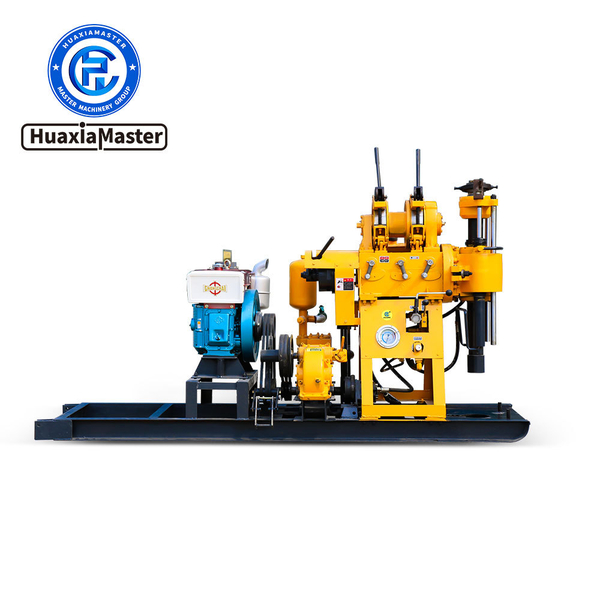

XY Series Hydraulic Core Drilling Rig
1、Introduction of XY Series Hydraulic Core Drilling Rig
XY series drilling rig is a medium-shallow hole core drilling rig with hydraulic feed and mechanical transmission. It can be used in geological core drilling, grouting hole drilling and hydro logical well drilling. Diamond, composite and alloy bits can be selected for drilling according to different strata. ‌
2、Features of XY Series Hydraulic Core Drilling Rig
2.1 It has automatic hydraulic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2.2 The steel ball clamping device can replace drill pipe without stopping, easy to operate, safe and reliable.
2.3 Equipped with hole bottom pressure gauge, easy to grasp the situation in the hole.
2.4 Compact structure, centralized handle, small area, easy to move.
2.5 With large torque and strong bearing capacity, it can realize remote control and speed change, and the operation is centralized and convenient.
3、Parameters of XY Series Hydraulic Core Drilling Rig
===|тэги удалены|=== XY series hydraulic core drilling rig
Drilling rig model XY-80 XY-100 XY-150 XY-180 XY-200
Drilling capacity Drilling depthDrilling depthDrilling depth 80m 100m 150m 180m 200m
Open hole dia. 219mm 325mm 325mm 375mm 400mm
End hole dia. 75mm 75mm 75mm 75mm 75mm
Drill pipe dia 42mm 42/50mm 42/50mm 42/50mm 42/50mm
Drilling angle 75-90° 75-90° 75-90° 75-90° 75-90°

Vertical shaft Vertical shaft speed 142、285r/min 142、285、570r/min 140、295、470、790、1010r/min 71、142、310、620r/min 71、142、310、620r/min
Vertical axis travel 450mm 450mm 450mm 450mm 450mm
Hydraulic oil pump Pressure 1.2Mpa 1.2Mpa 1.2Mpa 1.2Mpa 1.2Mpa
Speed 1500r/min 1500r/min 1800r/min 1800r/min 2000r/min
Hoist Lifting capacity 9.3kN 9.8kN 14kN 15kN 20kN
Wire rope capacity 27m 35m 35m 35m 35m
Wire diameter 12mm 12mm 12mm 12mm 12mm
Power Matching power S1100 Diesel Engine S1100 diesel engine
10kw motor S1105 diesel engine
11kw motor
